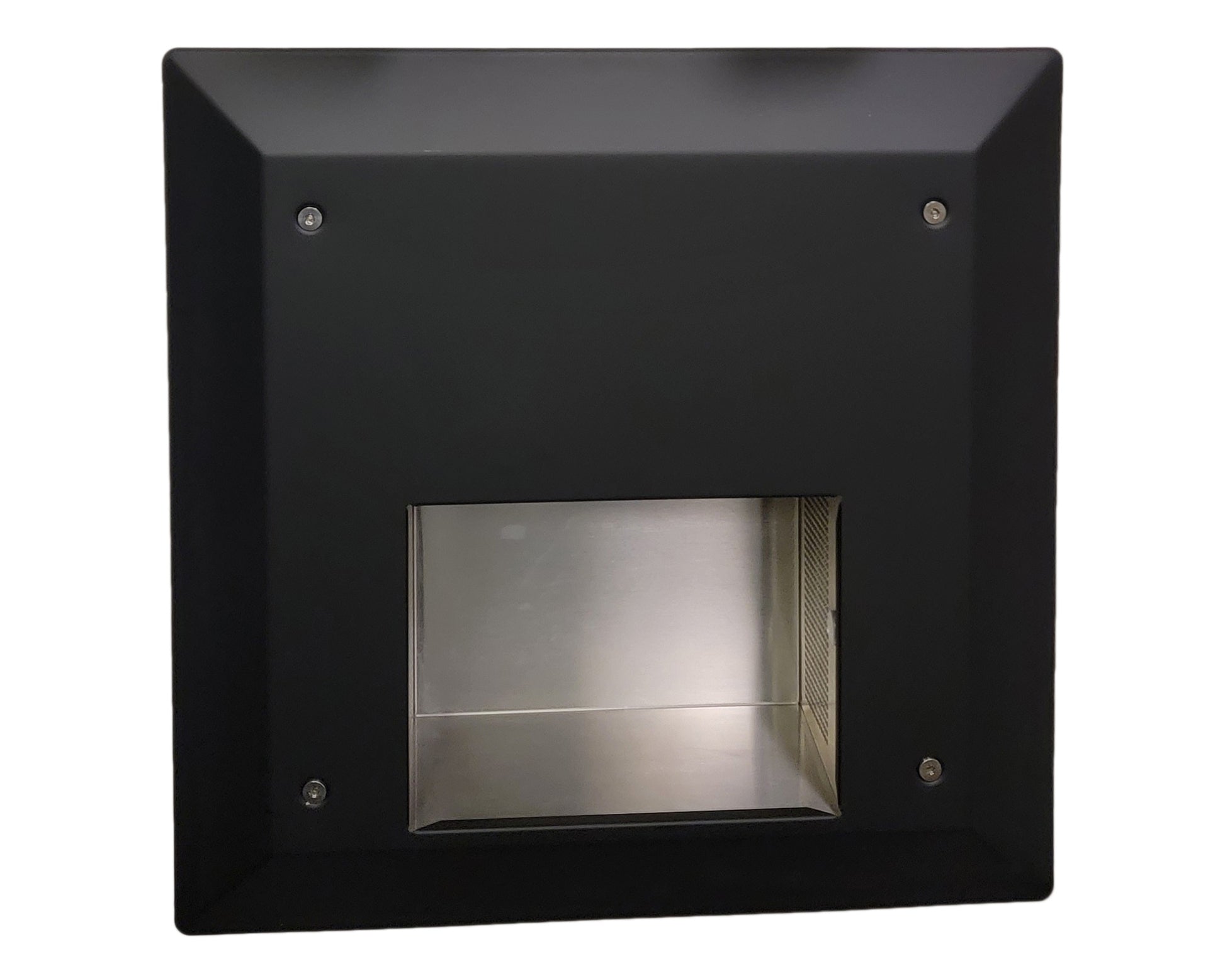

Pinnacle Dryers - PDC-R10 Recessed Mount Dryer in Black

Order 20+ dryers and save 20% on your order. Need 40+ dryers? Contact us for a custom quote.

The PDC-R10 is a touchless, recessed mount hand dryer. It is automatic, virtually vandal resistant, dries hands in 12-15 seconds, and comes with a 10-year warranty. This model extends 7/8" from the wall when installed and has a black powder coat finish on the cover.

Please note there is a 2-week lead time for the black powder coat finish.

Request A Quote

Specs

Motor:
Heavy-Duty, 7500 RPM, Double-Insulated, CSA & UL Component Approved

Power Consumption:
9.6 amps 1.15 KW at 120 VAC Nominal

Fan Rotor:
Pressed, Galvanized and Electrically balanced delivering 150 CFM

Heating Element:
1000W heavy-duty, thermally protected to cut out at 90C

Cover:
18 gauge stainless steel

Circuitry:
All new solid-state circuitry has completely eliminated all mechanical parts. Unit is activated by an infrared sensor when hands are placed in drying chamber. Dryer operates only when in use.

Drying Time:
Complete drying is accomplished in 12-15 seconds

Weight: 20 lbs.

Safety:
Five levels of over-temperature protection

Resources

Warranty

Pinnacle hand dryers have one of the best warranties in the market. That is because our hand dryers are well designed and made with quality materials.

We have a 10-year warranty on our mechanical parts. Our printed circuit board is under warranty for three years.

Because our hand dryers are built to last, there is rarely a need to replace parts. But if needed, we ship both warranties and purchased parts within 24 hours.

Full Warranty Details

Shipping & Returns

Orders of less than 10 dryers ship UPS Ground. Orders of 11 to 360 dryers ship by LTL Carrier and larger orders ship by Truckload Carrier.

Returns are accepted, less freight, and are subject to a 25% restocking fee.

Attractive Design, Made in the USA

Our hand dryers have a sleek design with no mechanical parts on the outside, are made of USA stainless steel, and are manufactured in North Carolina. All of our parts are also made in the USA and stocked in our warehouse. Having parts readily available makes it easy to quickly take care of our customer’s requests.

  • Vandal Resistant

    The Pinnacle PDC-R10 Recessed Hand Dryer is the most vandal-resistant hand dryer on the market. It recesses completely into the wall with a beveled 18-gauge stainless steel cover over the front of the hand dryer.

  • Less Maintenance

    Be done with your messy, paper-trashed restrooms! Our hand dryers do not require daily maintenance, and you save $$$ when switching from paper towels. View an estimate of savings using our hand dryers.

  • Noise Reducing

    Pinnacle hand dryers are quiet. At 80 decibels, our dryers are much quieter than the jet-style hand dryers. And because of the unique design, your hands dry quickly. We have customers that have replaced their jet-style hand dryers with Pinnacle hand dryers due to their quieter operation.

  • Greener Savings

    Our hand dryers are automatic. The warm air blows when hands are placed in the drying chamber and stops blowing when hands are removed. There are no buttons to touch to activate the dryer and no other parts on the outside of the hand dryer.

  • ADA Compliant

    Our Model PDC-R10 Recessed Hand Dryer fits completely in the wall. Our P3-12S Surface Hand Dryer extends less than 4" from the wall. Both are compliant with ADA regulations. All Pinnacle hand dryers are UL compliant.

  • Excellent Customer Service

    We take pride in taking care of our customers. Our customer service is top-notch, responding immediately with quotes, dryer orders, and parts requests. All of our parts are made in the USA and we stock them in our NC warehouse.

Pinnacle Hand Dryers are Vandal Resistant!

The Pinnacle PDC-R10 Recessed Hand Dryer is the most vandal-resistant hand dryer on the market. It recesses completely into the wall with a beveled 18-gauge stainless steel cover over the front of the hand dryer. This commercial hand dryer is your best option if you deal with vandalism.
